Pendulum Impact Tester for Film Impact Resistance Evaluation

The Pendulum Impact Tester plays a critical role in evaluating the mechanical durability of flexible materials, especially plastic films used in packaging. During transportation, handling, and filling processes, packaging films often face sudden impact forces that can lead to puncture or failure. Understanding how a material absorbs and resists impact energy helps manufacturers prevent product damage and ensure consistent quality. This is where the Pendulum Impact Tester becomes an essential laboratory instrument for packaging professionals and quality control personnel.

ASTM D3420 and the Spencer Impact Test Method

The ASTM D3420 standard defines the most widely accepted method for measuring the impact resistance of film using a pendulum-based puncture technique. This method is also commonly referred to as the Spencer Impact Test, named after the original concept of evaluating puncture energy through a swinging pendulum.

ASTM D3420 focuses on determining the energy required to burst and penetrate a film specimen mounted over a circular aperture. The test does not attempt to describe the deformation process in detail. Instead, it delivers a direct and repeatable measurement of puncture energy, which makes it highly suitable for comparative material evaluation and quality control.

Why Impact Resistance Matters in Film Packaging

Impact resistance directly influences packaging integrity. Thin films used in food, pharmaceutical, and medical packaging must withstand accidental drops, compression, and sharp contact during logistics. Poor impact resistance can result in micro-holes or complete puncture, leading to leakage, contamination, or reduced shelf life.

By using a Pendulum Impact Tester, manufacturers can:

• Compare different film structures or resin formulations
• Evaluate process consistency across production batches
• Optimize material selection for demanding packaging environments

These insights support both product development and routine quality assurance.

Testing Principle of the Pendulum Impact Tester

The Pendulum Impact Tester operates on a straightforward mechanical principle. A pendulum with a hemispherical impact head swings freely from a defined height. As it strikes the center of the film specimen, mounted securely between two clamping plates, the pendulum transfers kinetic energy to the material.

The specimen absorbs part of this energy during puncture. The tester calculates the energy loss by measuring the difference between the initial and final swing positions of the pendulum. This energy loss corresponds to the impact resistance of film.

ASTM D3420 specifies two common procedures, each with different aperture sizes and impact head dimensions. These procedures allow the test to accommodate a wide range of film types and thicknesses while maintaining result consistency.

Key Components That Ensure Accurate Results

A reliable Pendulum Impact Tester integrates several critical components:

• Stable Base and Frame: Prevents vibration and energy loss during high-energy impacts
• Free-Swinging Pendulum: Ensures repeatable impact velocity and angle
• Precision Impact Head: Maintains standardized contact geometry
• Secure Clamping System: Minimizes specimen slippage and ensures uniform stress distribution
• Calibrated Energy Measurement System: Accurately records absorbed energy

Together, these elements guarantee test repeatability and compliance with ASTM D3420 requirements.al waste and maximize consumer satisfaction.

Advantages of Using a Modern Pendulum Impact Tester

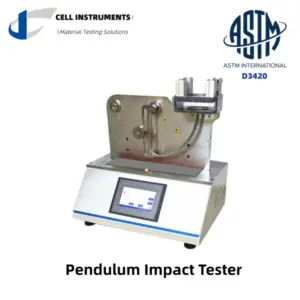

Modern instruments significantly improve testing efficiency and data reliability. The Cell Instruments PIT-01 Film Pendulum Impact Tester integrates advanced control and automation features while maintaining full compliance with ASTM D3420.

• PLC control with HMI touch screen, simplifying operation
• Pneumatic specimen clamping, improving consistency
• Automatic pendulum release, enhancing repeatability
• Precise angle measurement, ensuring accurate energy calculation
• Data auto statistics, reducing manual analysis workload

These capabilities help laboratories streamline testing while maintaining professional accuracy.

Applications Across Packaging and Film Industries

The Pendulum Impact Tester serves a wide range of applications, including:

• Flexible food packaging films
• Medical and pharmaceutical packaging materials
• Industrial protective films
• Multilayer and barrier film structures

In each case, impact resistance data supports safer packaging design and better product protection.

Conclusion

The Pendulum Impact Tester remains a trusted solution for evaluating the impact resistance of film under controlled laboratory conditions. Through the Spencer Impact Test defined in ASTM D3420, manufacturers gain reliable insights into material performance against sudden puncture forces. With advanced instruments like the Cell Instruments PIT-01, testing becomes more efficient, repeatable, and aligned with modern quality standards—helping packaging professionals deliver safer and more durable products to the market.
